气力输送

　　pneumatic conveying

　　高压空气喷射泵（以下简称仓泵）是我公司在风电管道材料输送技术领域使用的关键设备。这一技术适用于锂电池原料化工合成、垃圾焚烧飞灰输送、电厂除灰等粉状物料输送，今天小编将仓泵的有关知识给大家详细介绍下。

　　The high-pressure air jet pump (hereinafter referred to as the bin pump) is a key equipment used by our company in the field of wind power pipeline material transportation technology. This technology is suitable for the chemical synthesis of lithium battery raw materials, transportation of waste incineration fly ash, power plant ash removal and other powdered material transportation. Today, the editor will introduce the relevant knowledge of warehouse pumps in detail to everyone.

　　仓泵的工作原理

　　Working principle of warehouse pump

　　当物料进入泵体仓满后关闭各通道，对仓泵密闭，从底部进高压空气经过流化装置将仓内物料形成流态化状态，此时，打开出粉口，高压气流将物料沿着封闭的管道输送到目的地，完成输送任务。适用于长距离、现场转弯、攀爬等复杂情况。采用螺旋、皮带等机械设备不便使用的场所。

　　When the material enters the pump compartment and is full, close all channels and seal the compartment pump. High pressure air enters from the bottom and passes through the fluidization device to form a fluidized state of the material in the compartment. At this time, open the powder outlet, and the high-pressure airflow will transport the material along the closed pipeline to the destination, completing the conveying task. Suitable for complex situations such as long-distance, on-site turning, climbing, etc. Places where mechanical equipment such as screws and belts are inconvenient to use.

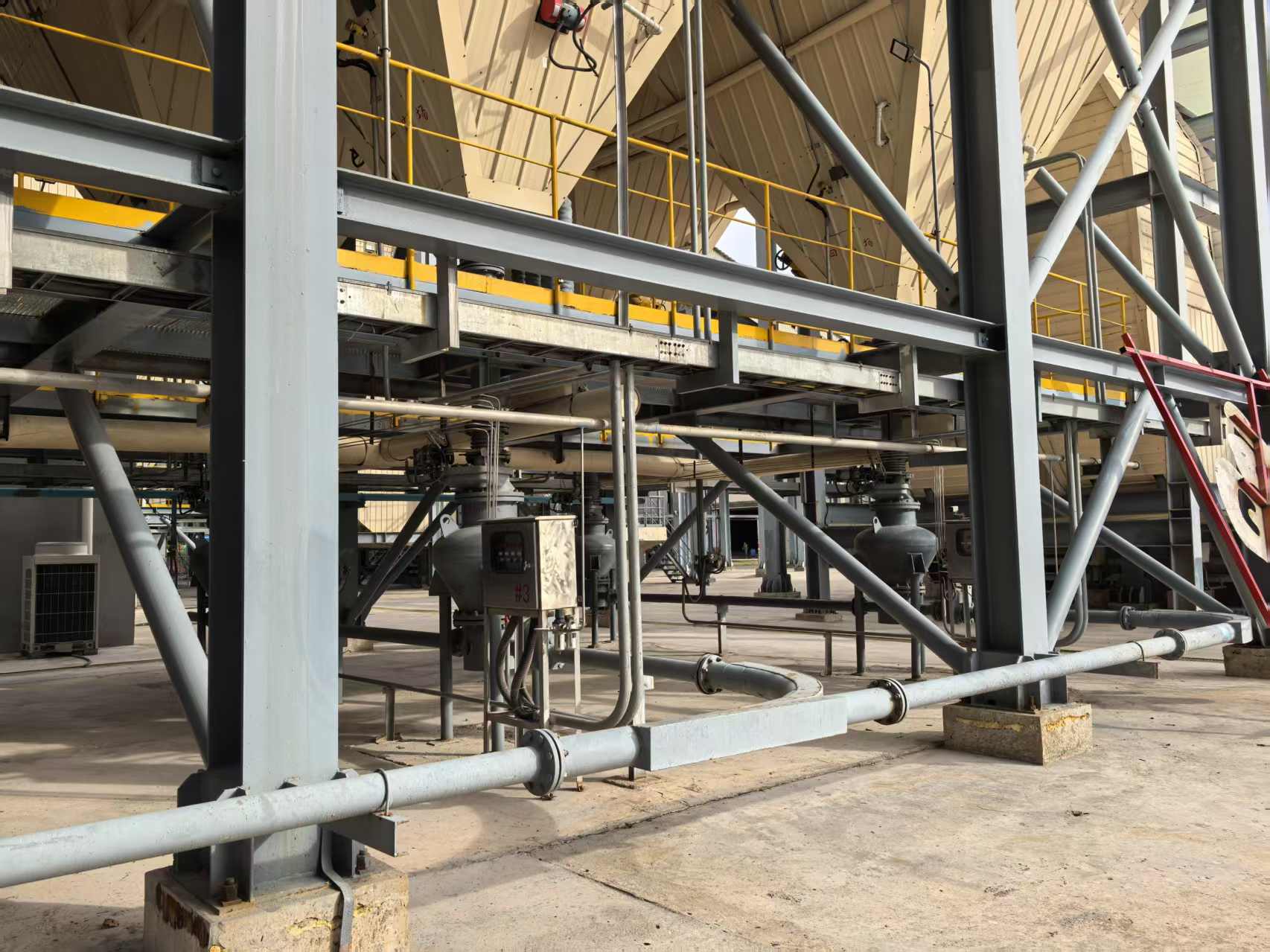

　　仓泵设备

　　Warehouse pump equipment

　　仓泵的使用条件

　　Usage conditions of warehouse pump

　　01运输的材料为干粉材料，大多数颗粒尺寸不超过2mm，密度≤2；水分含量一般应小于3%（握得紧时形成球状，抛出时可自然松动），附着力较小。

　　The materials transported are dry powder materials, with most particle sizes not exceeding 2mm and a density of ≤ 2; The moisture content should generally be less than 3% (when held tightly, it forms a spherical shape and can naturally loosen when thrown out), with low adhesion.

　　02输送设计工作温度为0≤t≤200°C，瞬时高温不超过250°C，环境储存温度为-19°C。

　　The designed working temperature for conveying is 0 ≤ t ≤ 200 ° C, with an instantaneous high temperature not exceeding 250 ° C, and an environmental storage temperature of -19 ° C.

　　03工作介质是经过过滤、冷却、脱水、干燥和清洁的压缩空气，配有压缩空气储罐。

　　The working medium is compressed air that has been filtered, cooled, dehydrated, dried, and cleaned, and is equipped with a compressed air storage tank.

　　04输送管道的出口应配备气体和物料分离装置，如袋式过滤器。

　　The outlet of the 04 conveying pipeline should be equipped with gas and material separation devices, such as bag filters.

　　05输送管道直径大于DN100及以上，转弯采用大直径弯头，需内衬陶瓷耐磨材料。

　　When the diameter of the conveying pipeline is greater than DN100 or above, large diameter elbows should be used for turning, and ceramic wear-resistant materials should be lined inside.

　　06操作方式为全封闭、全自动，也可手动操作。

　　The operation mode of 06 is fully enclosed, fully automatic, and can also be manually operated.

　　07卸料方式为可单点卸料，亦可多点卸料。

　　The unloading method for 07 can be single point unloading or multi-point unloading.

　　仓泵设备的应用

　　Application of Warehouse Pump Equipment

　　仓泵的结构组成

　　The structural composition of the warehouse pump

　　01针型进料阀:粉末入口是关闭的，没有空气泄漏，在阀体中形成一个压力容器。

　　01 Needle type feeding valve: The powder inlet is closed and there is no air leakage, forming a pressure vessel in the valve body.

　　02料位检测:检测阀体内的料位，当仓库装满时，启动和关闭进料阀。

　　02 Material level detection: Detect the material level inside the valve body, and when the warehouse is full, start and close the feeding valve.

　　03仓体:容积在0.2-8m?的密闭压力容器，耐受压力0.8MPa，必须安装安全阀，生产厂家具有压力容器资格证书。

　　03 Warehouse body: A sealed pressure vessel with a capacity of 0.2-8m ?, capable of withstanding a pressure of 0.8MPa, must be equipped with a safety valve, and the manufacturer must have a pressure vessel qualification certificate.

　　04仓底流化机构:在仓底部具有特殊的高压流化机构，使高压空气进入仓体后经过该装置形成有序的空气布结构，让粉体流化，并有序进入出粉管内，顺畅输送。

　　04 Bottom fluidization mechanism: There is a special high-pressure fluidization mechanism at the bottom of the warehouse, which allows high-pressure air to enter the warehouse and form an orderly air distribution structure through the device, making the powder fluidized and orderly entering the powder outlet pipe for smooth transportation.

　　05空气调整机构:检测管道压力，调整空气压力、流量，确保物料安全输送。

　　05 Air adjustment mechanism: detects pipeline pressure, adjusts air pressure and flow rate to ensure safe material transportation.

　　06出料阀:出料口阀门采用耐磨、双板闸阀，具有密闭性能和足够的强度、耐磨性能。

　　06 Discharge Valve: The discharge outlet valve adopts wear-resistant, double plate gate valve, which has sealing performance and sufficient strength and wear resistance.

　　仓泵的结构组成

　　The structural composition of the warehouse pump

　　上述就是气力输送设备之仓泵的工作原理、使用条件及组成结构的相关知识了， 如您还有疑问，请咨询我们熠生辉，我们将为您提供VIP一对一优质的产品及服务！

　　The above is the relevant knowledge about the working principle, usage conditions, and composition structure of the bin pump in pneumatic conveying equipment. If you have any further questions, please consult us at Yishui, and we will provide you with VIP one-on-one high-quality products and services!
